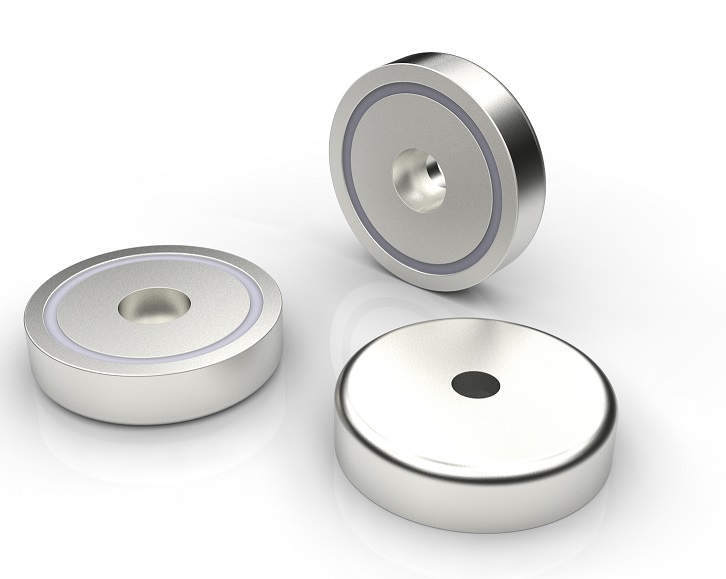

Ferrite flat pot magnet with through hole
  • Product description

These ferrite pot magnets have a through hole and can be fastened with screws on other objects .

They are cheap in price and the ferrite magnet does not rust easily.

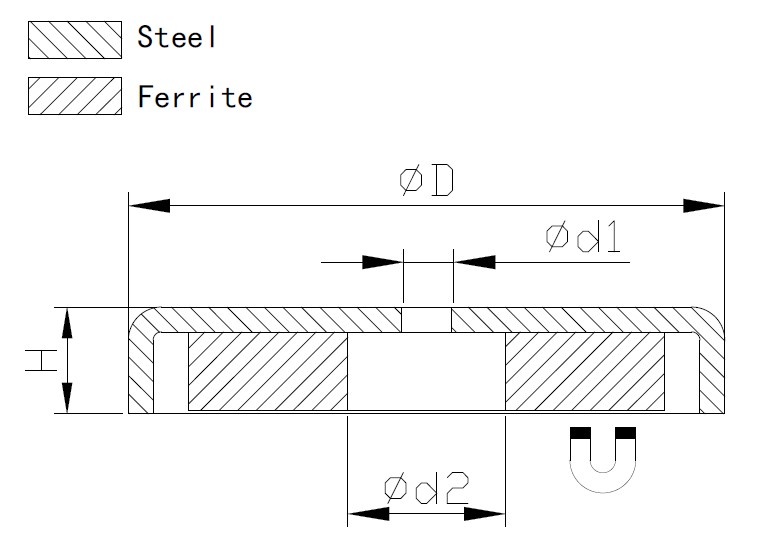

Item No. D H d1 Force Weight
mm mm mm Kg N Lbs g
RBFB20 30.86 4.83 3.96 5 49 11 16
RBFB30 32.00 4.57 3.81 5 53 12 16.5
RBFB36 36.00 6.6 4.83 7 66 15 32
RBFB50 51.56 7.39 4.83 16 155 35 66
RBFB60 60.33 8.79 6.86 22 222 50 111.5
RBFB70 66.68 9.35 7.11 36 356 80 154
RBFB75 73.91 9.4 7.11 38 378 85 183
RBFB80 81.28 10.54 7.11 45 445 100 241.5
RBFB85 96.27 12.96 12.7 54 534 120 412
RBFB90 124.46 12.44 12.7 95 934 210 684





You may also like:
NdFeB pot magnet with through hole

NdFeB pot magnets with through hole can be fastened with screws that have suitable fitting external stem.

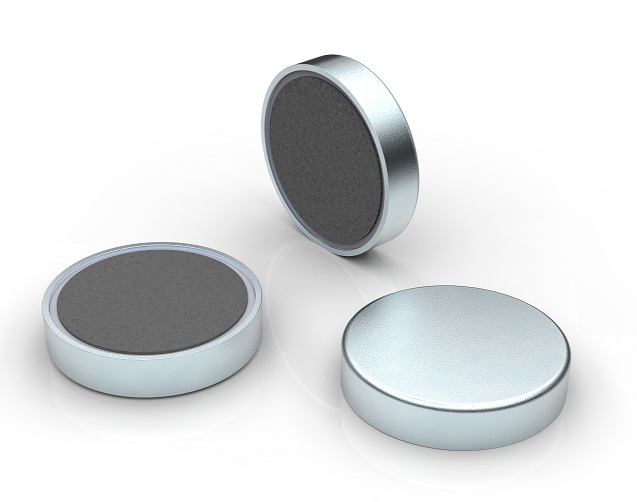

Ferrite flat pot magnet

These magnets are often glued at places where holding function is needed but screw is not wanted.
