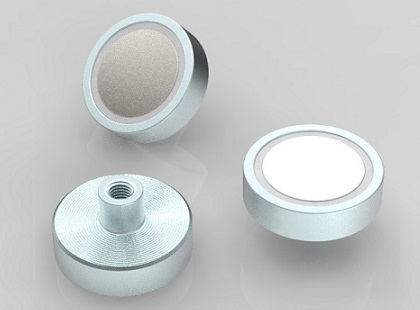

Ferrite flat pot magnet with threaded bush

Product description

These ferrite pot magnets have a threaded bush and this structure makes it possible to mount hooks or other objects on this part.

Comparing with its NdFeB version they have lower holding force but they are much cheaper.

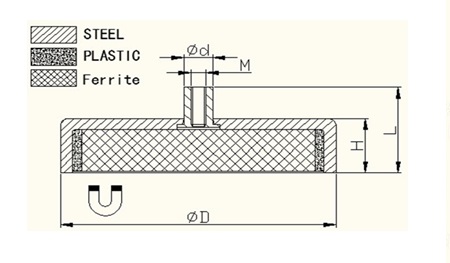

Item No.	D	H	L	d	M	Force			Weight
Item No.	mm	mm	mm	mm		Kg	N	Lbs	g
TFE10F	10	4.5	11.5	6	M3	0.4	4	0.9	3
TFE16F	16	4.5	11.5	6	M3	1.8	18	4	7
TFE20F	20	6	13	6	M3	3	30	6.7	14
TFE25F	25	7	15	8	M4	4	40	9	21
TFE32F	32	7	15	8	M4	8	80	18	33
TFE36F	36	7.7	16	8	M4	10	100	22	44
TFE40F	40	8	18	10	M5	12	125	28	59
TFE47F	47	9	17	8	M4	18	180	40	85
TFE50F	50	10	22	12	M6	22	220	49	111
TFE57F	57	10.5	18.5	8	M4	28	280	63	149
TFE63F	63	14	30	8	M4	35	350	78	247
TFE80F	80	18	34	20	M10	61	600	135	498
TFE100F	100	22	43	22	M12	92	900	202	956

You may also like:

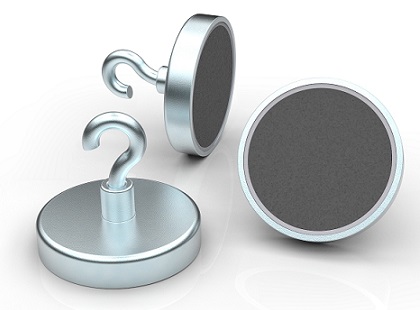

Ferrite flat pot magnet with threaded bush These ferrite pot magnets have a threaded bush and this structure makes it possible to mount hooks or other objects on this part.	Ferrite flat pot magnet with hook These Ferrite hook magnets are widely used to display advertising boards, posters, banners from ceiling.
