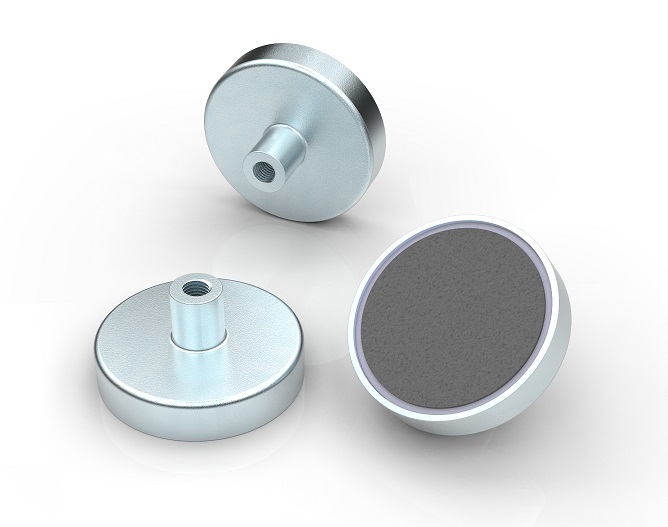

These NdFeB pot magnets have a threaded bush and this structure makes it possible to mount hooks or other objects on this part.
Comparing with its ferrite version NdFeB gives even higher holding force.
|

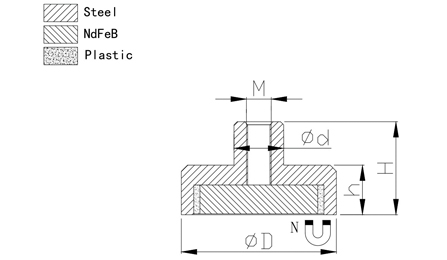

Item No |
D |
d |
H |
h |
M |
Force |
Weight |
|
mm |
mm |
mm |
mm |
|
Kg |
N |
Lbs |
g |
|
M-TNE6F |
6 |
6 |
11.5 |
4.5 |
M3 |
0.5 |
5 |
1 |
2 |
|
M-TNE8F |
8 |
6 |
11.5 |
4.5 |
M3 |
1.3 |
13 |
3 |
3 |
|
M-TNE10F |
10 |
6 |
11.5 |
4.5 |
M3 |
2.5 |
25 |
5 |
4 |
|
M-TNE13F |
13 |
6 |
11.5 |
4.5 |
M3 |
6 |
60 |
13 |
5 |
|
M-TNE16F |
16 |
6 |
11.5 |
4.5 |
M4 |
9 |
95 |
21 |
7 |
|
M-TNE20F |
20 |
8 |
13 |
6 |
M4 |
14 |
140 |
31 |
16 |
|
M-TNE25F |
25 |
8 |
14 |
7 |
M4 |
20 |
200 |
45 |
27 |
|
M-TNE32F |
32 |
10 |
15.5 |
7 |
M5 |
35 |
350 |
78 |
45 |
|
M-TNE40F |
40 |
10 |
18 |
8 |
M6 |
68 |
670 |
150 |
80 |
|
M-TNE60F |
60 |
14 |
15 |
30 |
M8 |
113 |
1107 |
249 |
*** |
|
M-TNE75F |
75 |
16 |
15 |
34 |
M10 |
164 |
1607 |
361 |
*** |
