NdFeB flat pot magnet with screw hole
  • Product description

These NdFeB pot magnets have an internal thread hole and can be screwed on, such as, wall, wood board for holding purpose.

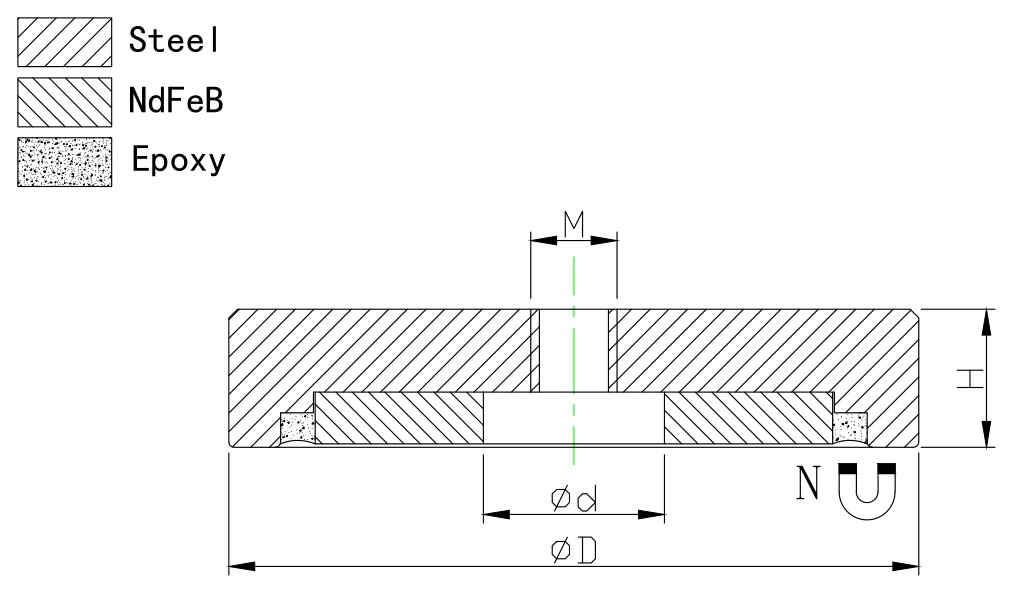

Item No D d H M Force Weight
mm mm mm   Kg N Lbs g
M-RBNB25F 25 4.5 7 M4 16 160 36 24
M-RBNB32F 32 5.5 7 M5 33 330 74 40
M-RBNB40F 40 10.5 8 M5 51 500 112 74
M-RBNB50F 50 10.5 10 M8 81 800 180 140
M-RBNB60F 60 8.5 15 15 95 931 209 250
M-RBNB63F 63 11.7 14 M10 112 1100 247 315
M-RBNB75F 74.6 11.7 15 M10 178 1750 393 479




You may also like:

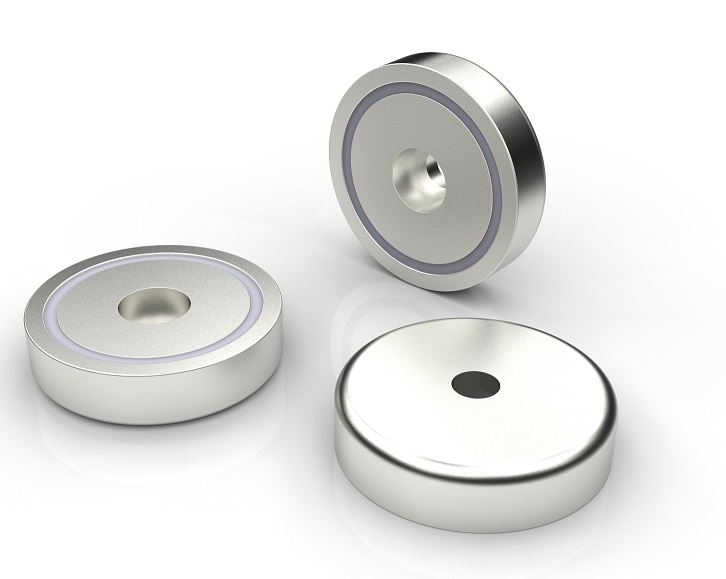

NdFeB flat pot magnet with countersunk

These magnet can be fastened with a countersunk
screw and they are widely used in many places.

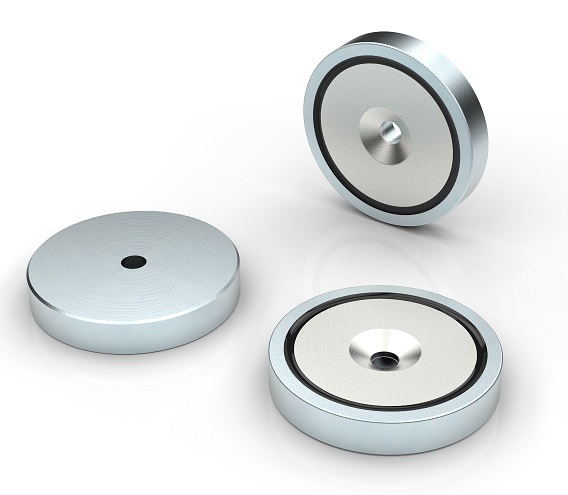

NdFeB flat pot magnet with through hole
