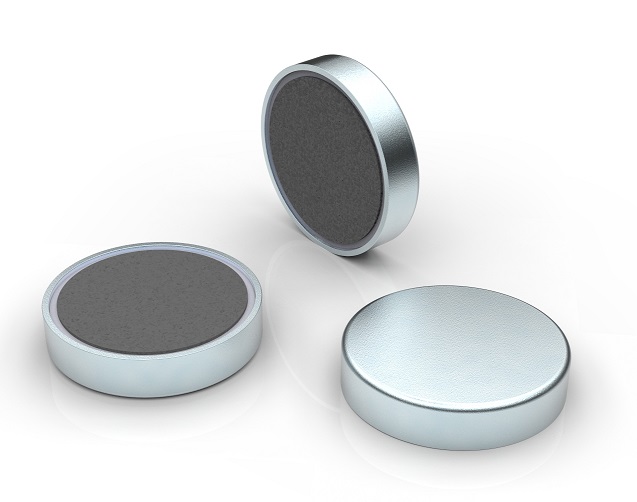

NdFeB flat pot magnet

Catalog download

  • Product description
These NdFeB pot magnets are flat and they are often glued at places where holding function is needed but screw is not wanted for the protection of the surface.

Item No. D H Force Weight
mm mm Kg N Lbs g
M-RBNE6 6 4.5 0.5 5 1 1
M-RBNE8 8 4.5 1.3 13 3 2
M-RBNE10 10 4.5 2.5 25 5 3
M-RBNE13 13 4.5 6 60 13 4
M-RBNE16 16 4.5 9 95 21 6
M-RBNE20 20 6 14 140 31 14
M-RBNE25 25 7 20 200 45 25
M-RBNE32 32 7 35 350 78 41
M-RBNE42 42 9 68 666 149 85




You may also like:
Ferrite flat pot magnet

These Ferrite pot magnets are cheap in price and the ferrite magnet does not rust easily.

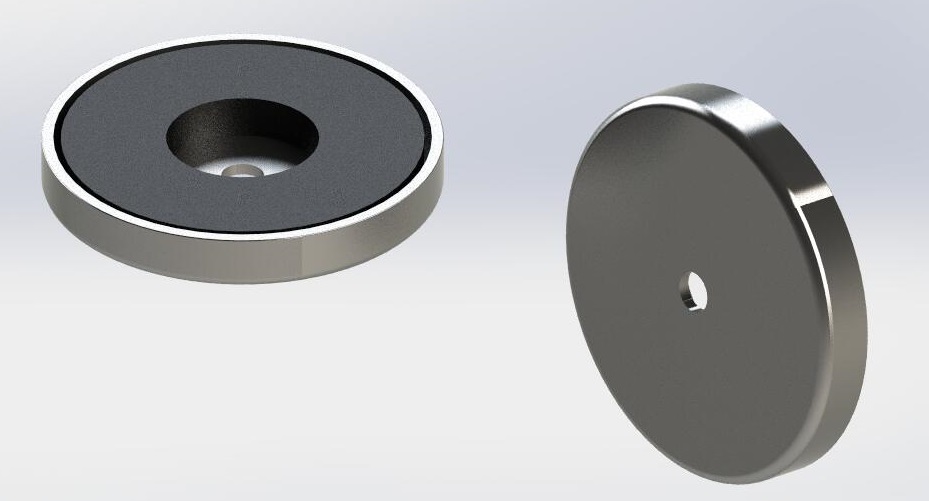

 		 Ferrite flat pot magnet with through hole

These ferrite pot magnets have a through hole and can be fastened with screws on other objects.
