Product description

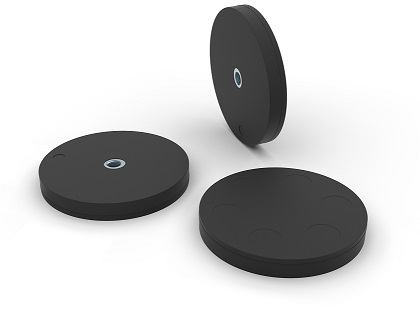

This rubber coated NdFeB magnet has a center hole on one side and a countersunk hole on the other side. The rubber coat could protect the working surfaces from scratches. The rubber coating is made from Santoprene, which offers better durability.

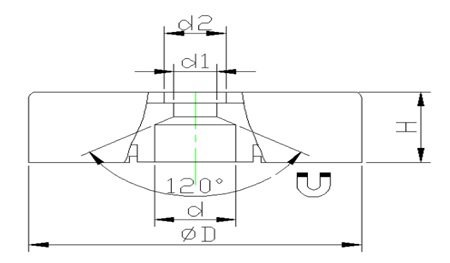

Item No.	D	H	d	d1	d2	Force			Magnet	Weight
Item No.	mm	mm	mm	mm	mm	Kg	N	Lbs	Magnet	g
RCFB43C-B	43	12.5	10.5	5.5	8	8	80	18	Ferrite	76
RCNB43C-B	43	12.5	10.5	5.5	8	26	260	58	NdFeB	86

You may also like:

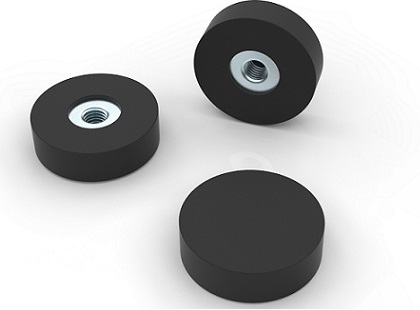

NdFeB rubber coated magnet with female thread These rubberized NdFeB pot magnets have a female thread hole and can be fastened with parts that have suitable fitting external stem.	NdFeB rubber coated magnet with screw hole These rubberized NdFeB pot magnets have a screw hole and can work together with a bolt .
